| Brand Name: | XINYA |
| Model Number: | DSJ180/150 |
| MOQ: | 1 |
| fiyat: | $1,200-1,500 |
| Attribute | Value |
|---|---|
| Warranty | 1 YEAR |
| Customized Support | OEM |
| Application | POWER CONSTRUCTION |

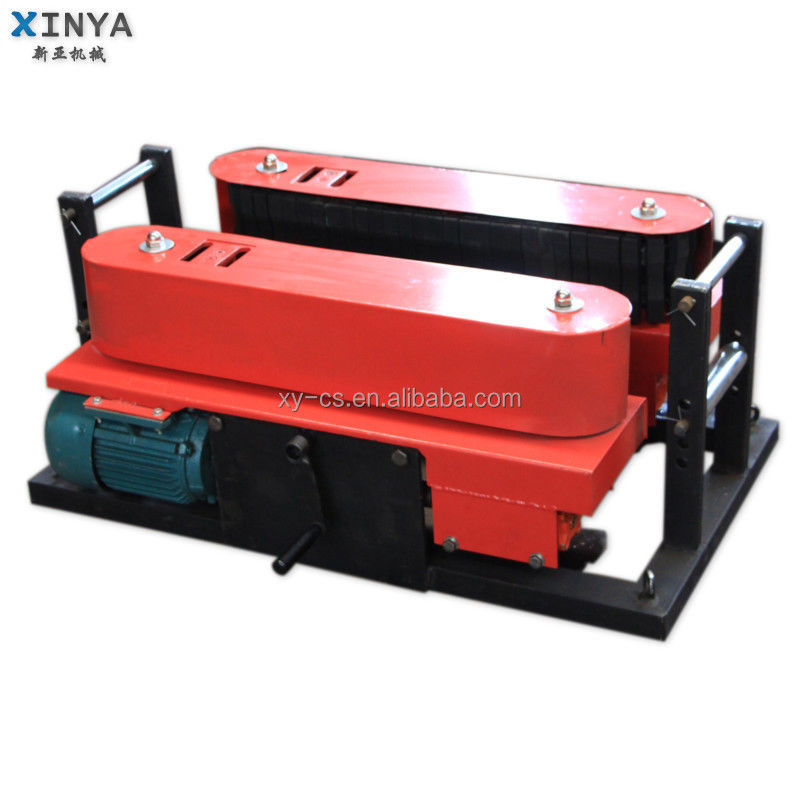

| Item | DSJ-180 Rubber Belt Cable Pulling Machine Cable Puller Winch |
| Weight (kg) | 150 |
| Pulling speed (m/min) | 8 |
| Electric motor | 2*1.1 KW |
| Line pulling (KGS) | 700 |
| Cable diameter (mm) | 30-180 |
The DSJ-180 Rubber Belt Cable Pulling Machine is an efficient cable puller winch designed for professional cable installation applications.
The DSJ Small Volume Cable Conveyor Belt is the ideal machine for cable transmission in power, petroleum, chemical, industrial construction, power plant extension, substation and city network transmission projects. It is suitable for cable trays in any form of channel or cable pipe, capable of conveying various power and control cables.
Our complete production facilities and professional team manage the entire process from manufacturing to shipment. All products undergo 100% testing before delivery to ensure superior quality.
| Model Type | DSJ-150 | DSJ-180 |
|---|---|---|
| Line pulling (KGS) | 700 | 900 |
| Pulling Speed (m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight (KG) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transmission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
