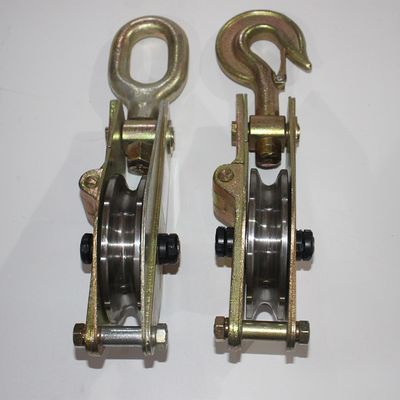

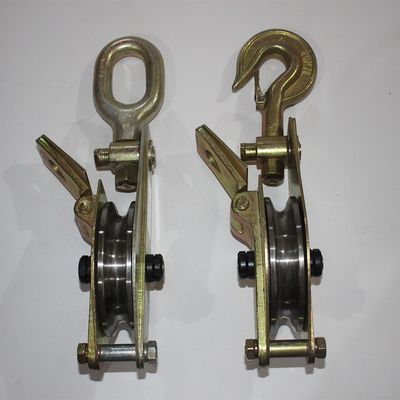

Rope Lifting Tower Erection Tools Hook Type Heavy Duty Wire Rope Snatch Pulley Block

Rope Lifting Tower Erection Tools Hook Type Heavy Duty Wire Rope Snatch Pulley Block
Rope Lifting Tower Erection Tools Hook Type Heavy Duty Wire Rope Snatch Pulley Block

Büyük resim :  Rope Lifting Tower Erection Tools Hook Type Heavy Duty Wire Rope Snatch Pulley Block

Ürün ayrıntıları:
Place of Origin: Jiangsu, China
Marka adı: XINYA
Sertifika: ISO
Model Number: QHN
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1pcs
Fiyat: get latest price
Packaging Details: carton
Delivery Time: 10-15 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000pcs/week

Rope Lifting Tower Erection Tools Hook Type Heavy Duty Wire Rope Snatch Pulley Block

Açıklama
Material: steel Rated Load: 10-150KN
Weight: 1.8-13.9KG Type: Lifting Pulley
Application: rope lifting type: Hook type
Vurgulamak:

steel erection tools

,

lattice poles

Tower Erection Tools Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting



Application

It is used for lifting and sagging operation in transmission line construction. It is used for pole and tower erection, line construction, equipment hoisting and other lifting applications.
The sheave is made of high strength qualified steel, the sheave is mounted on ball bearings. The frame of pulley blocks is galvanized. All the blocks have been tested before ex-works.
The single sheave pulley block can be designed as side open type and side closed type.

Note: Please specify the fitting styles (hook, eye, clevis) when ordering.



Characteristics

1.Material: Aluminum alloy

2.Single wheel opening hook type.Two or three sheaves are closed.

3.It is light weight using the aluminum alloy.



Technical Data

Order number Model Number of sheaves Rated load (kN) Outside diameter×width(mm) Weight (kg) Hoisting point type
11101 QH1GN-1K 1 10 Φ100×31 1.8 G H
11102 QHN1-2 2 10 Φ80×27 1.8 G H
11103 QHN1-3 3 10 Φ80×27 2.1 G H
11111 QHN2-1K 1 20 Φ120×35 2.2 G H B
11112 QHN2-2 2 20 Φ100×31 2.6 G H
11113 QHN2-3 3 20 Φ100×31 3.7 G H
11121 QHN3-1 1 30 Φ150×39 3.4 G H B
11122 QHN3-2 2 30 Φ120×35 4.5 G H
11123 QHN3-3 3 30 Φ100×31 4.6 G H
11131 QHN5-1K 1 50 Φ166×40 5.2 G H B
11133 QHN5-2 2 50 Φ150×39 5.5 G H
11134 QHN5-3 3 50 Φ120×35 5.1 G H
11141 QHN8-1K 1 80 Φ205×49 7.2 G H B
11142 QHN8-2 2 80 Φ166×40 8.3 G H
11143 QHN8-3 3 80 Φ150×39 7.9 G H
11151 QHN10-1K 1 100 Φ246×60 11.4 G   B
11152 QHN10-2 2 100 Φ166×40 10.2   H
11153 QHN10-3 3 100 Φ150×39 11.7   H
11161 QHN15-1K 1 150 Φ280×65 12.1     B
11162 QHN15-2 2 150 Φ205×49 12.8   H
11163 QHN15-3 3 150 Φ166×40 11.8   H
11164 QHN15-4 4 150 Φ150×39 13.9   H

Uses :applied in line construction to craning weight ,etc.

Features: to adopt aluminum alloy side panel and MC nylon sheave .so it is light .monosheave block is open.



Other Related Tools for Tower Erection

Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting

Gin pole Cable Winch

Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting

Steel Wire Rope Earth Screw Anchor

Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting

PP Rope Shackle
